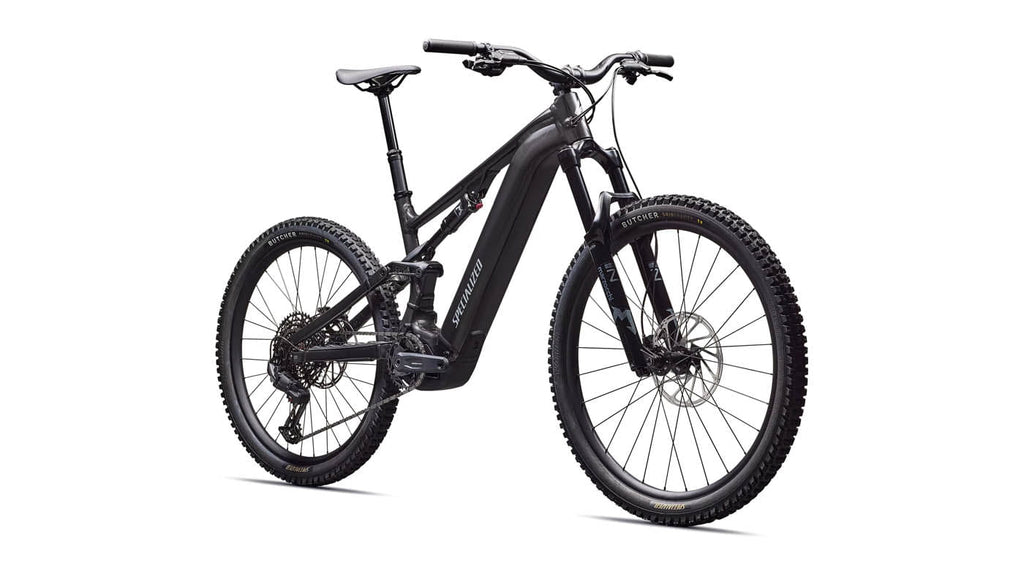

Description
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Technical Specifications
E-bike
UI/Remote

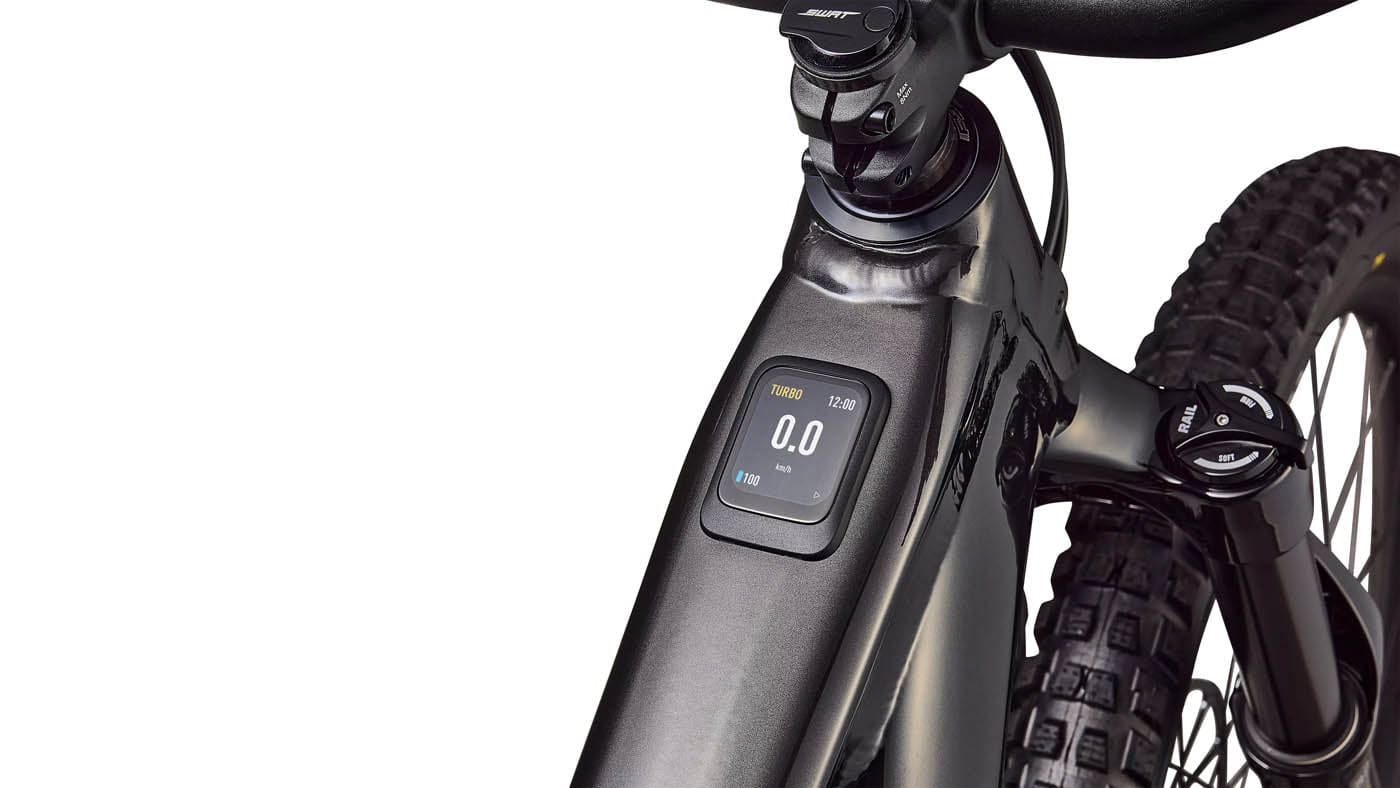

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App

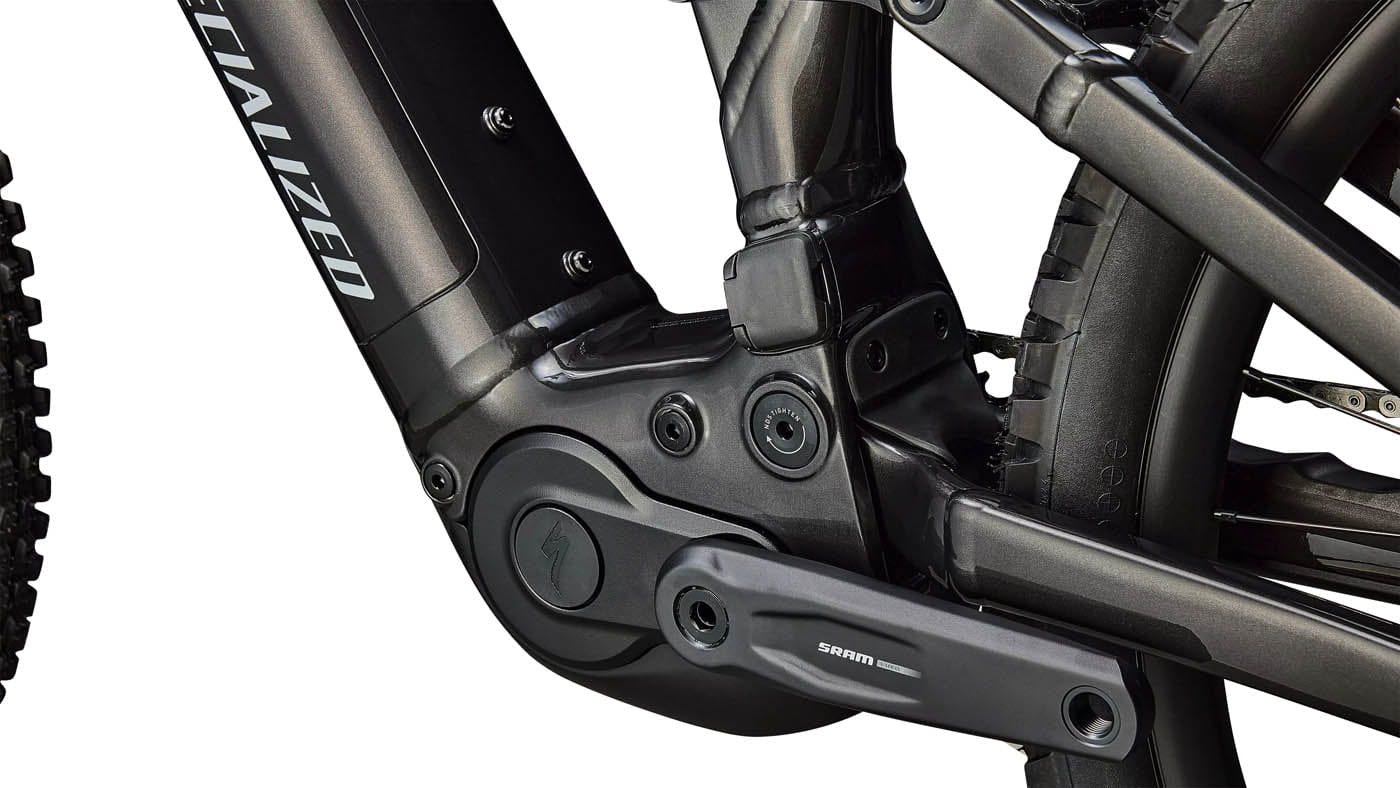

Motor
All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
Charger
Specialized 4amp charger
Battery
840Wh battery
Frameset
Seat Binder
Alloy, 38.6mm
Frame
All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

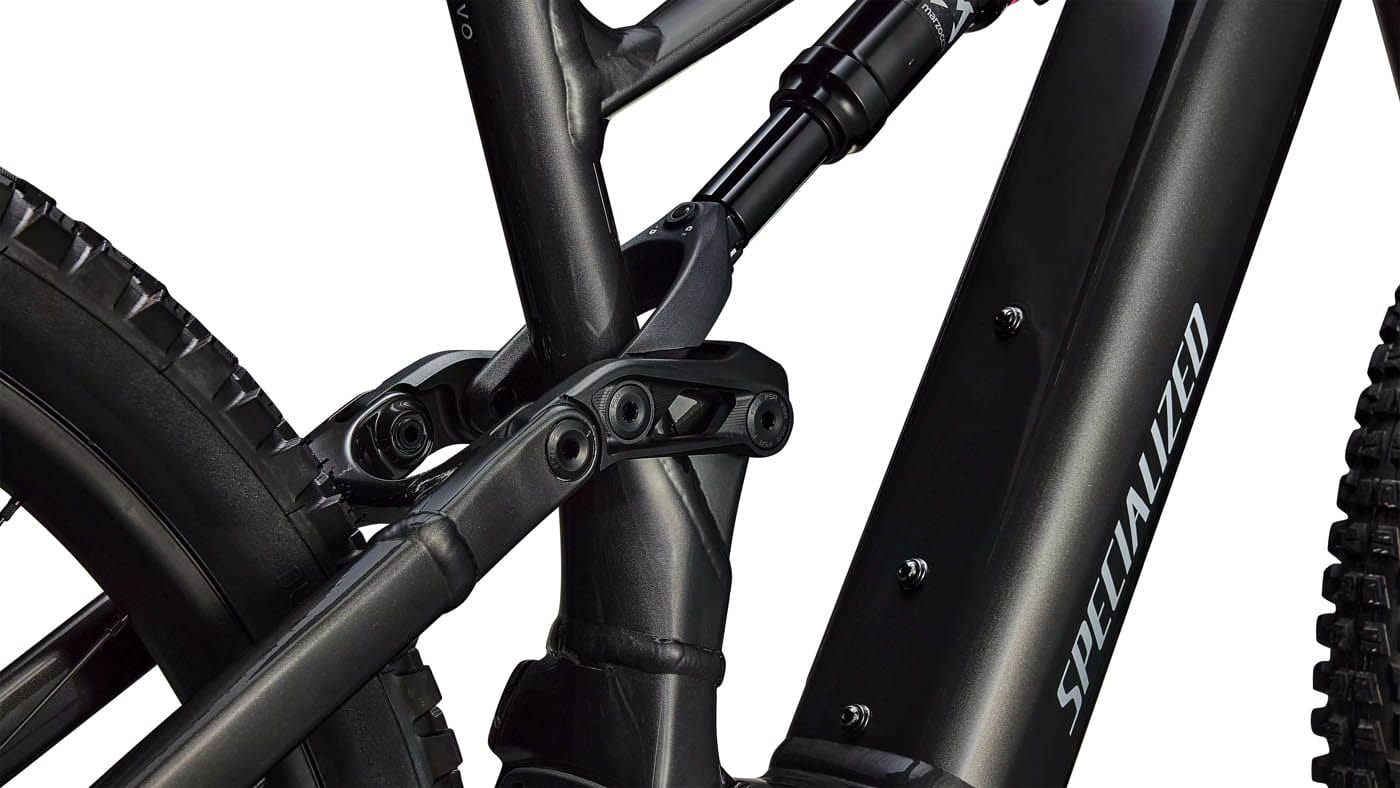

Suspension

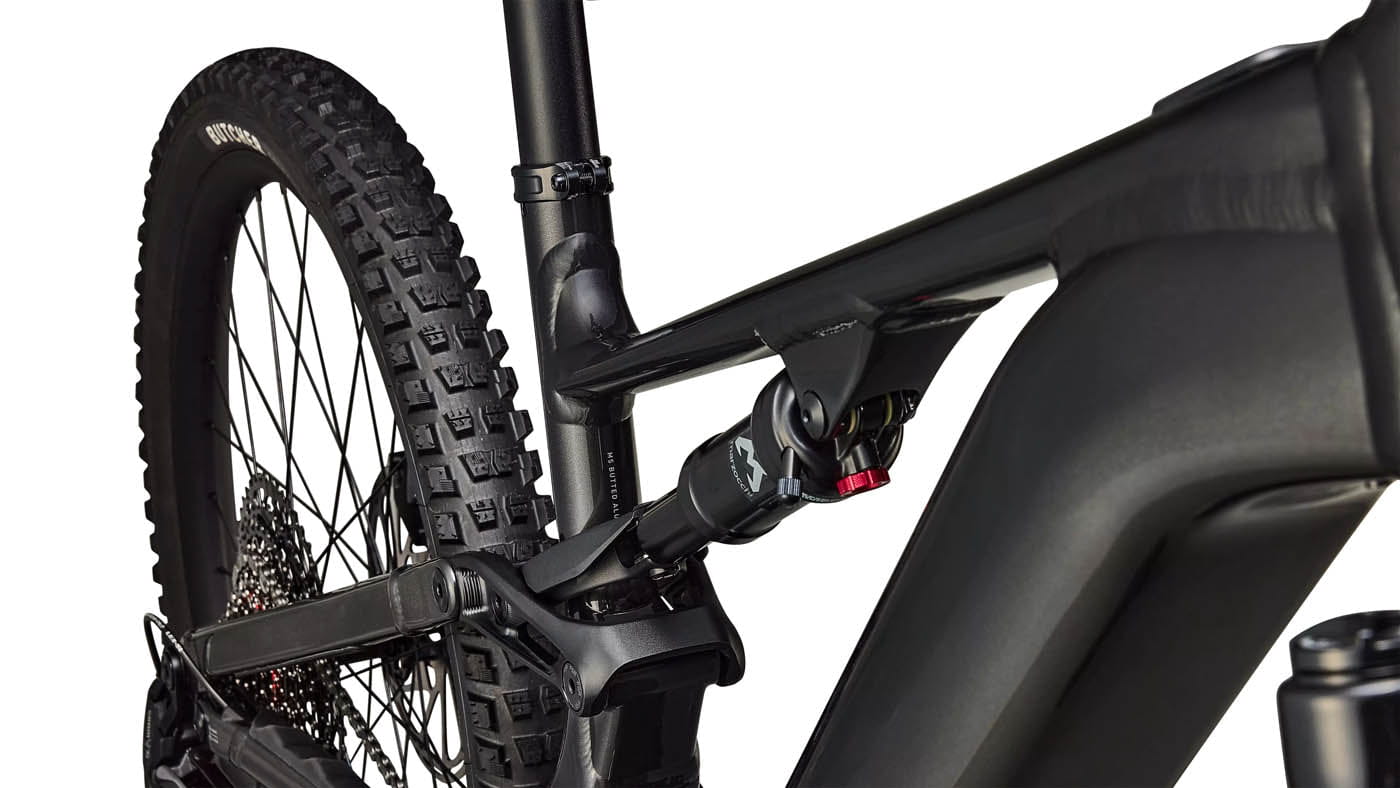

Rear Shock
S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT X Performance Elite , Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm
Fork
FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Cassette
SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Chain
SRAM 70 Transmission Chain
Shift Levers
SRAM 90 trigger, 12-speed, single click
Rear Derailleur
SRAM Eagle 90 T-Type
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Spokes
DT Swiss Industry
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta valve

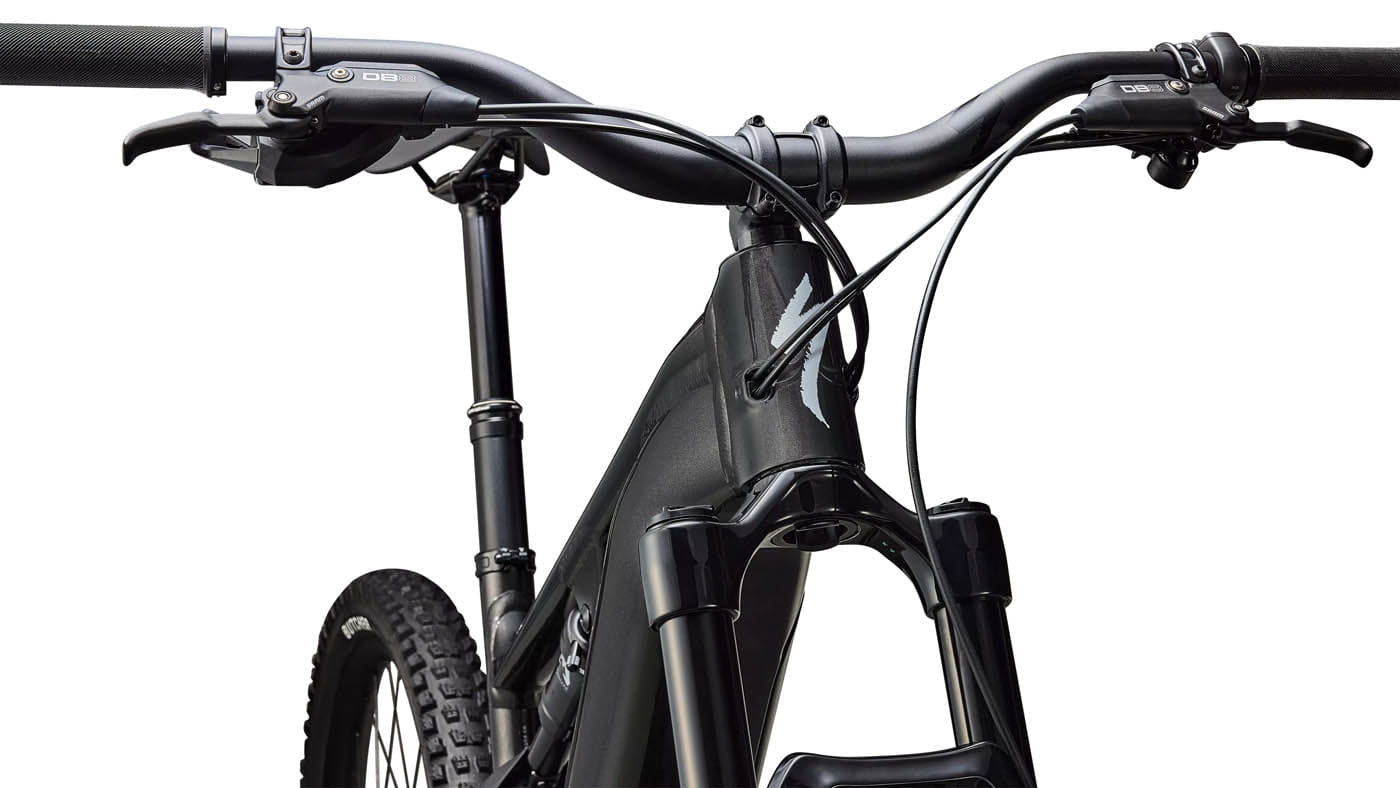

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width and 30mm rise, S3-S6 800mm width and 50mm rise
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Grips
Specialized Trail Grips
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
>>>>>>>>

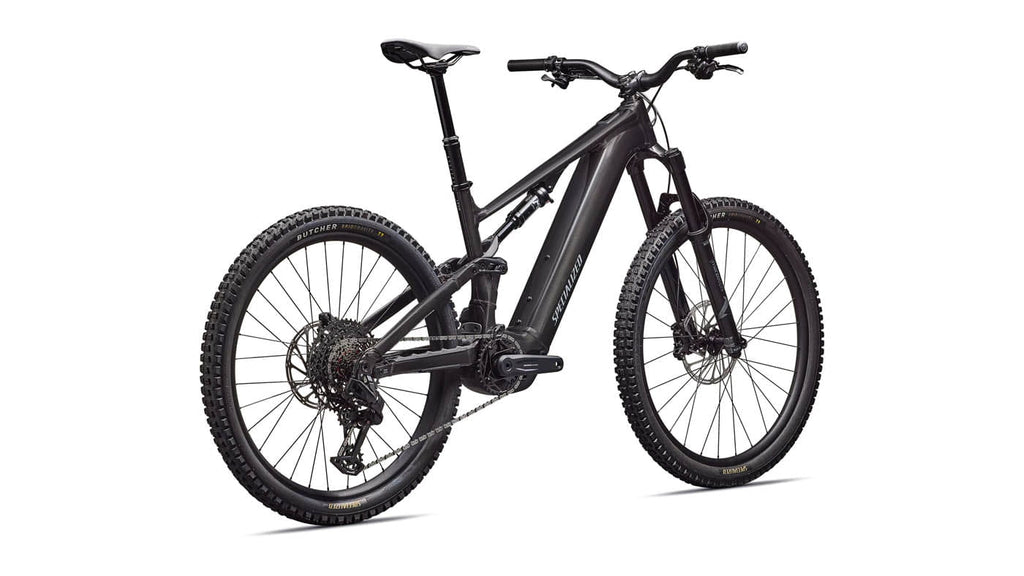

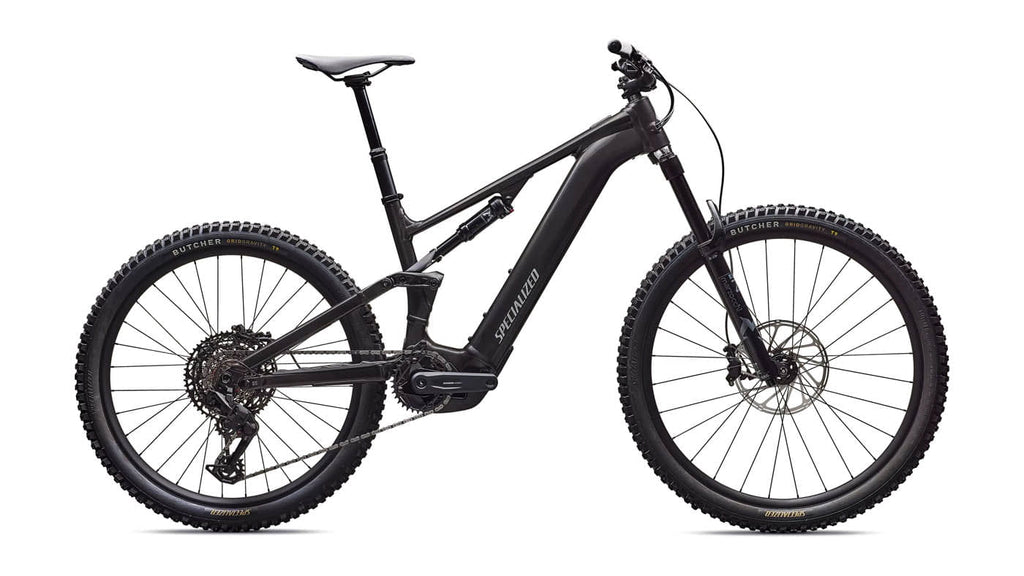

Turbo Levo 4 Alloy
101Nm Torque, 666W Power, 840Wh Battery
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Technical Specifications
E-bike
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Motor
Specialized 3.1 Motor, 101Nm torque, 666Nm power
Charger
Specialized 4amp charger
Battery
840Wh battery
Frameset
Seat Binder
Alloy, 38.6mm
Frame
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Suspension
Rear Shock
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Cassette
XS-1270, 12-speed, 10-52t
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Chain
SRAM Eagle 70 T-Type Flattop Chain
Rear Derailleur
SRAM Eagle 70 T-Type
Shift Levers
SRAM 70 trigger, 12-speed, single click
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Spokes
DT Swiss Industry
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Saddle
Body Geometry Bridge Saddle, steel rails
Grips
Specialized Trail Grips
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
>>>>>>>>
S-Works Turbo Levo SL 2 Di2
50Nm Torque, 320W Power, 320Wh Battery
With its unmatched combination of lightweight, ride quality, and supernatural amplification, the Levo SL delivers the best ride, amplified. Compare it to anything out there, with a motor or without, and we think you’ll agree—Levo SL is The Ultimate Trail Bike
Technical Specifications
E-bike
Charger - Custom charger, 48V System w/ SL system charger plug
UI/Remote - Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Motor - Specialized SL 1.2 Custom Rx Trail Tuned Motor
Battery - Specialized SL1-320, fully integrated, 320Wh
Seat Binder - Alloy, 38.6mm
Frame
Levo SL Carbon Frame, Fact 11m Carbon, Carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Suspension
Fork - FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset
Rear Shock - FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Factory 210x52.5mm
Brakes
Front Brake - Shimano XTR 9220, 4-piston caliper, hydraulic disc, 203mm rotor
Rear Brake - Shimano XTR 9220, 4-piston caliper, hydraulic disc, 203mm rotor
Drivetrain
Chainrings - Race Face alloy chainring, 104 BCD, 32T
Crankset - SRAM Carbon crankset, 165mm, Dub interface
Shift Levers - Shimano XTR Di2
Rear Derailleur - Shimano XTR Di2, 12-speed
Chain - Shimano XTR M9100, 12-speed w/ quick link
Cassette - Shimano XTR, 12 Speed, 10-51T
Wheels & tires
Front Tire - Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4
Rear Tire - Eliminator, GRID GRAVITY casing, GRIPTON® T7/T9 compound, TLR, 27.5X2.4
Front Wheel - Roval Traverse HD carbon, 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 15x110mm, 28h, 6 bolt
Rear Wheel - Roval Traverse HD carbon, 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h, 6 bolt
Inner Tubes - Standard, Presta Valve
Cockpit
Grips - Deity Lockjaw Grips
SeatPost - FOX Transfer Neo wireless, 34.9mm, S1: 100mm, S2: 125mm, S3: 175mm, S4-S6: 200mm
Handlebars - Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Stem - Race Face Turbine R,35mm clamp,40mm length
Saddle - Specialized Power Pro Mirror, Ti Rails, 143/155mm
