Description
101Nm Torque, 666W Power, 840Wh Battery

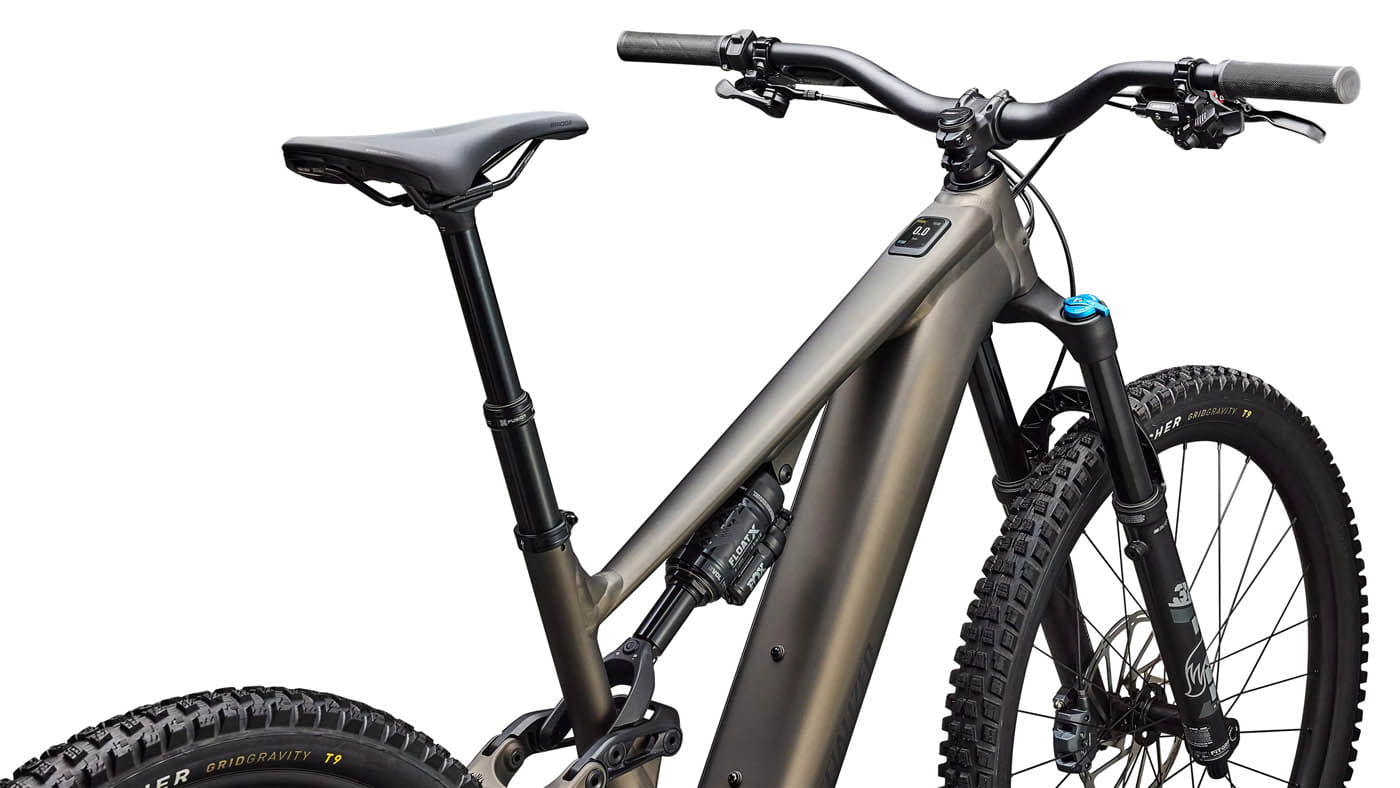

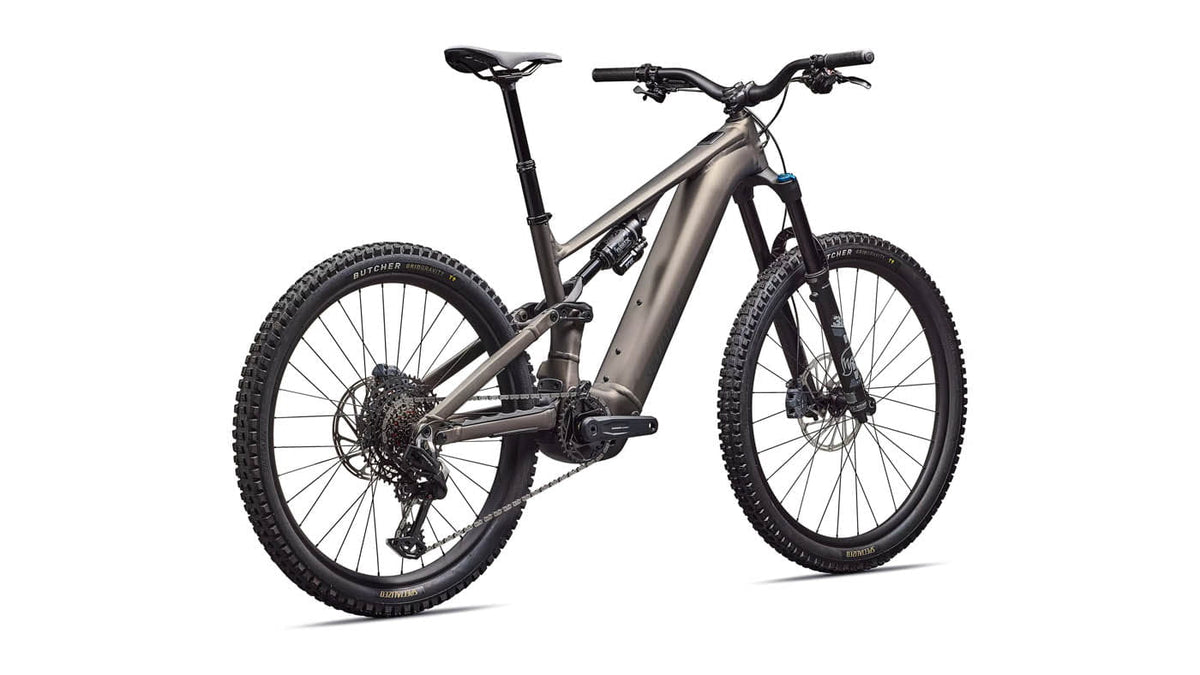

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Technical Specifications
E-bike

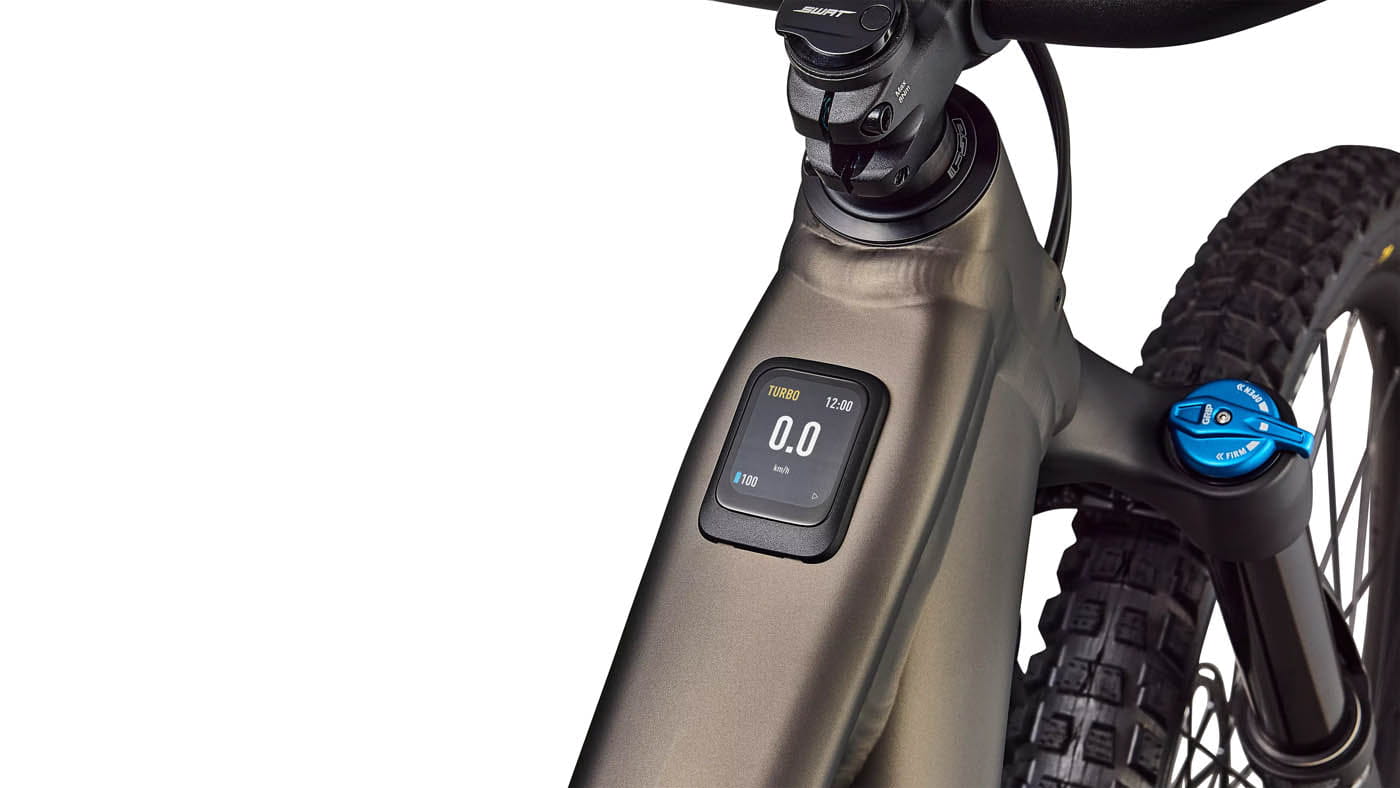

UI/Remote - All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

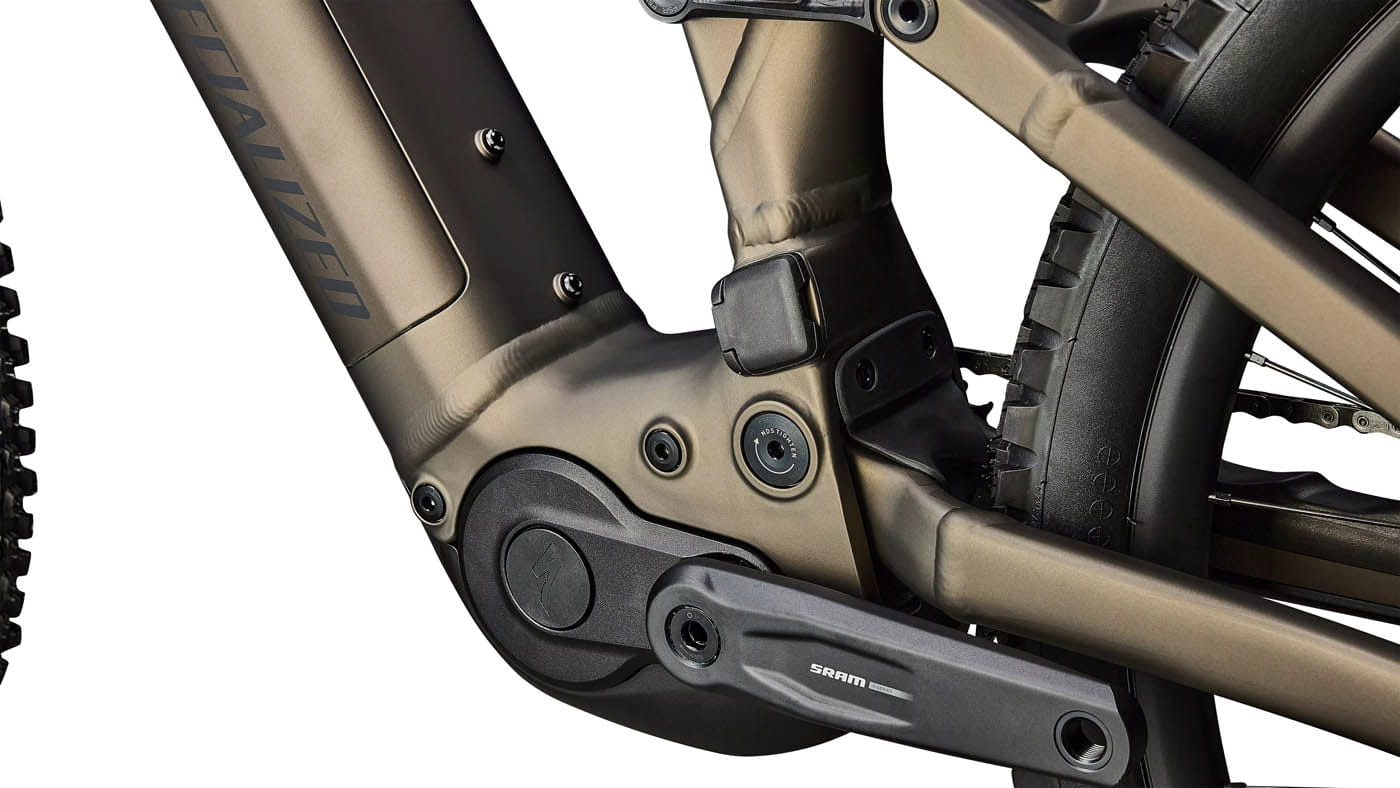

Motor - All New Specialized 3.1 Motor, 101Nm torque, 666W power
Charger - Specialized 4amp charger
Battery - 840Wh battery
Seat Binder - Alloy, 38.6mm
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Suspension
Fork - FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel

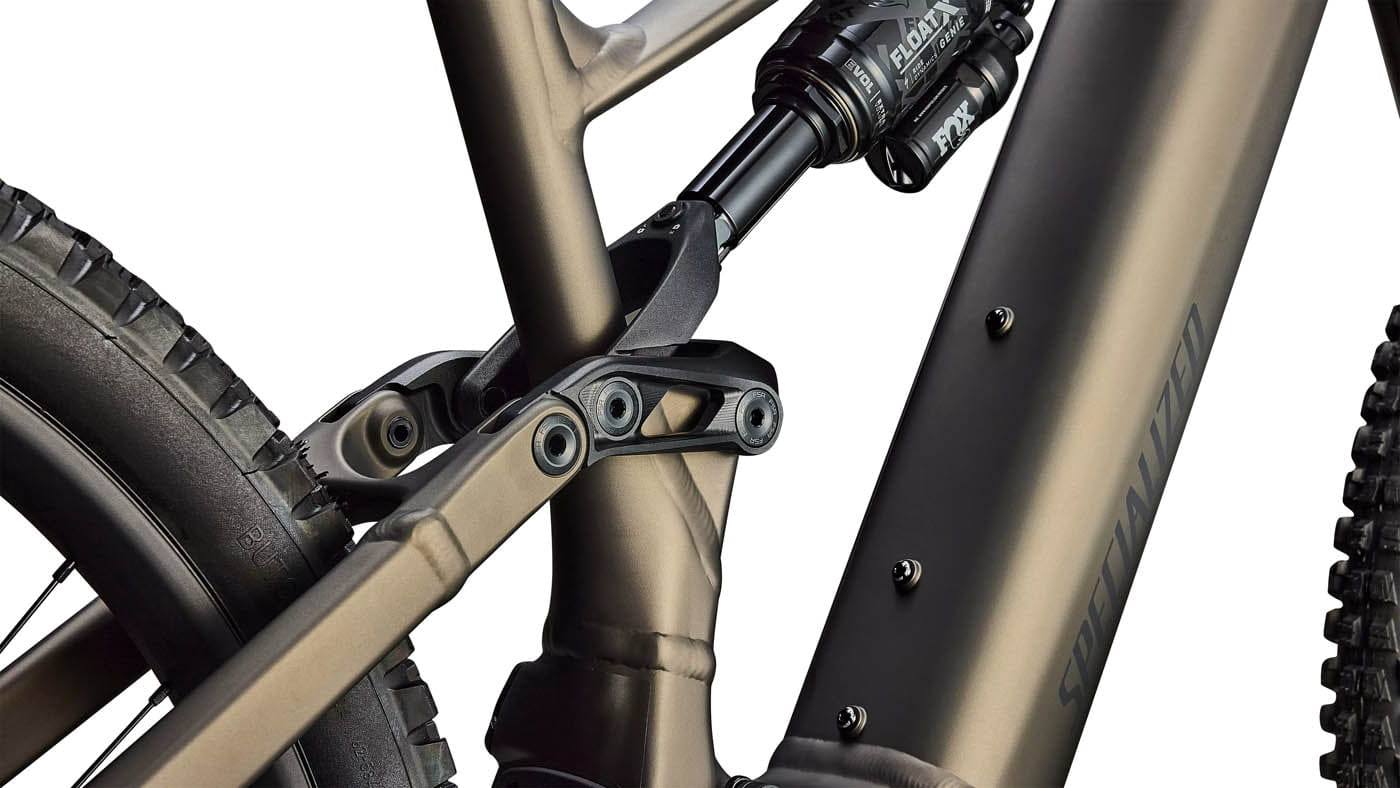

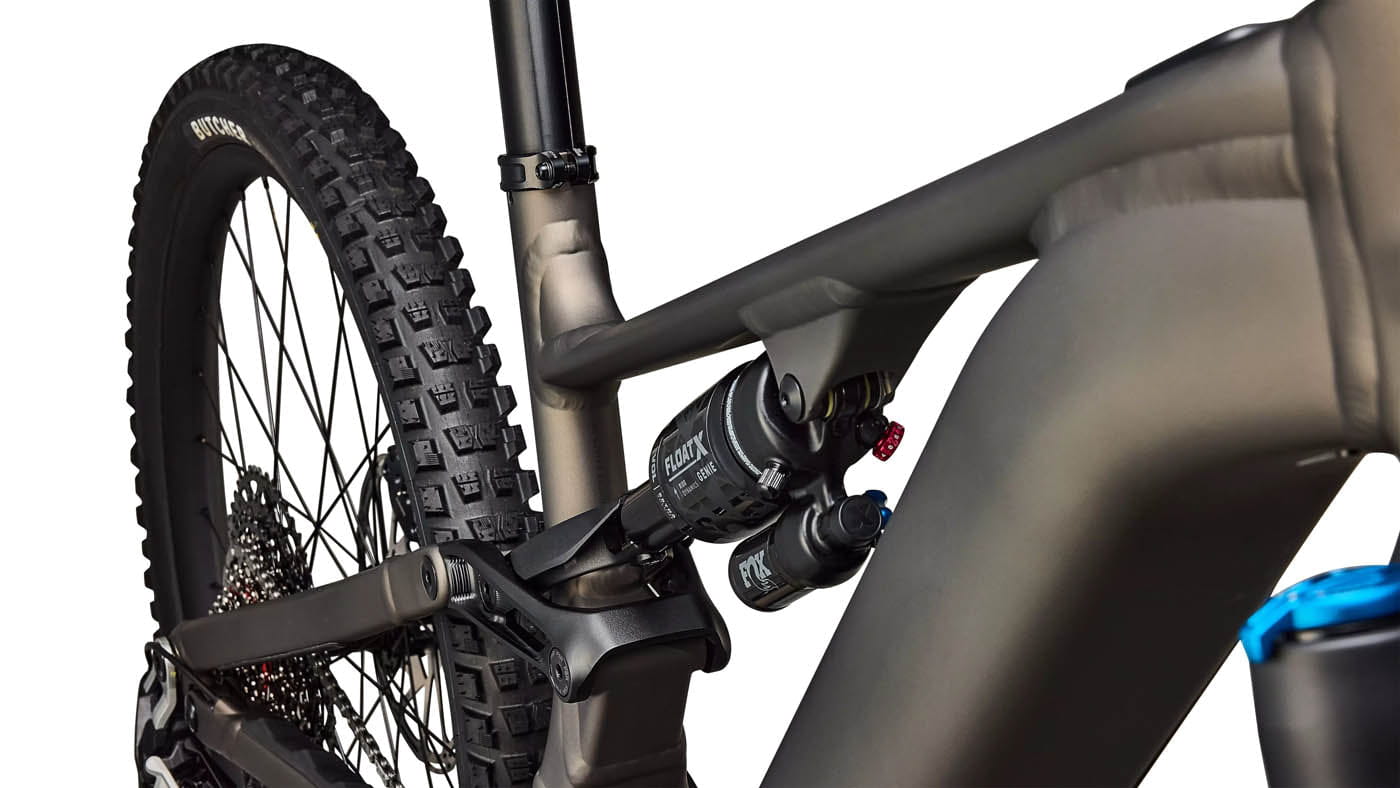

Rear Shock - FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
Brakes
Front Brake - SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake - SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor
Drivetrain
Cassette - SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Chainrings - SRAM T-type ring, 34T, 104 BCD, steel
Shift Levers - SRAM AXS POD Controller
Chain - SRAM GX Eagle Transmission Flattop Chain
Rear Derailleur - SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Crankset - SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
Front Hub - Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Front Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Spokes - DT Swiss Industry
Rear Hub - Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims - Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes - Standard, Presta valve
Cockpit
Stem - Alloy Trail Stem, 35mm bar bore

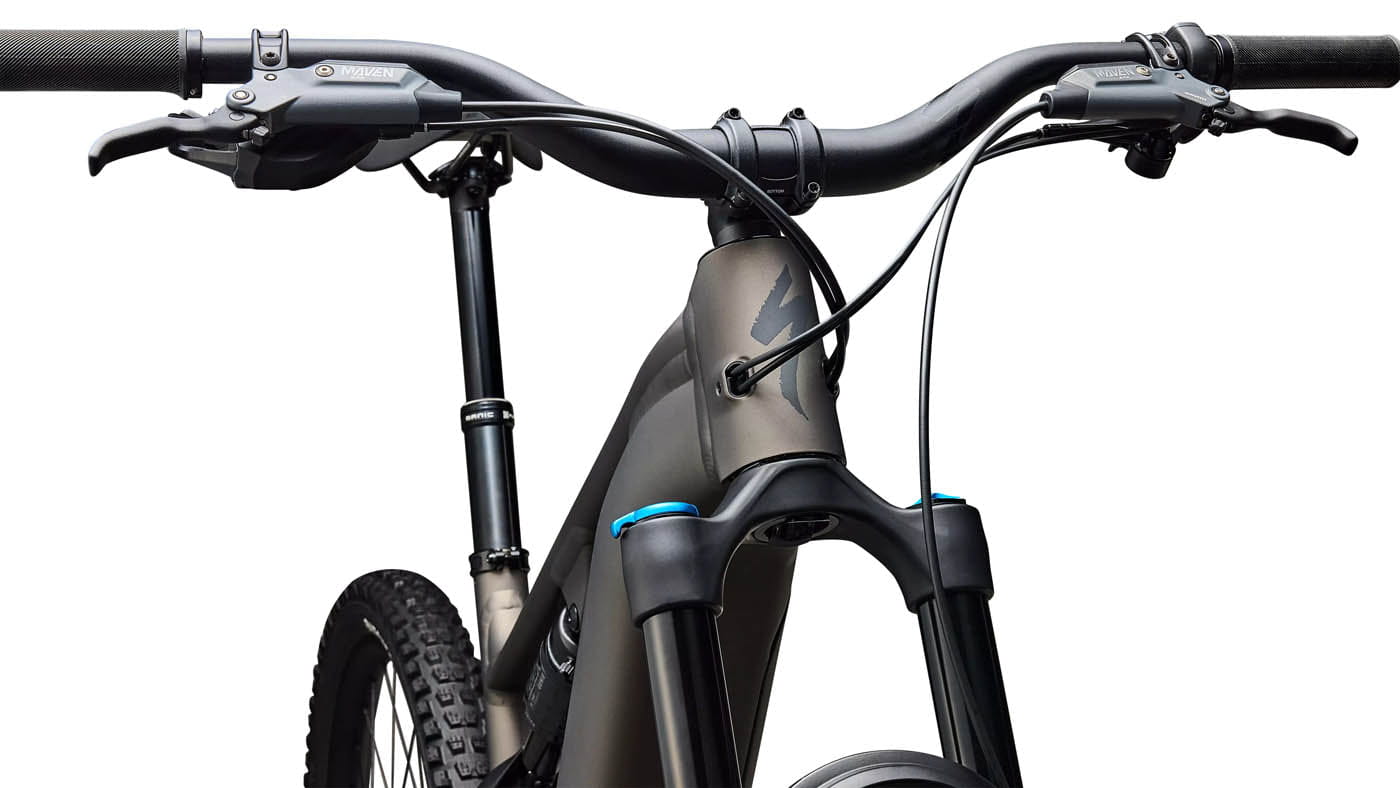

Handlebars - Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
Saddle - Bridge Comp, Hollow Cr-mo rails
Grips - Specialized Trail Grips
SeatPost - Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
