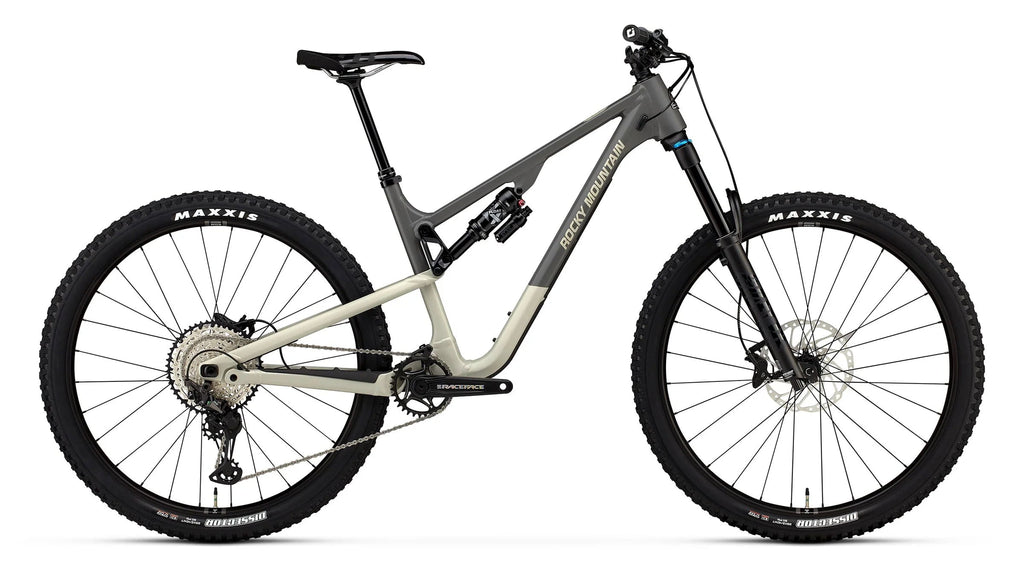

In search of a quiver-killer? We’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Frame
FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle
Fork
Fox 36 Float EVOL GRIP Performance Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Front Travel
150
Shock
Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel
140
Headset
FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
Handlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
ODI Elite Pro Lock On
Brakes
Shimano MT6120 4 Piston | Metal Pads
Shifters
Shimano XT
Rear Derailleur
Shimano XT
Cranks & Chainring
Race Face Ride Cinch | 32T | 24mm Spindle | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Cassette
Shimano SLX 10-51T
Chain
Shimano M6100
Front Hub
Rocky Mountain SL Sealed Boost 15mm
Rear Hub
Shimano XT Boost 148mm | 28H
Spokes
2.0 Stainless
Rims
WTB ST Light i30 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl
Tires
F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready //
Seatpost
X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm
Saddle
WTB Volt Race 142
Weight
34.782|15.81 KGS
