Description

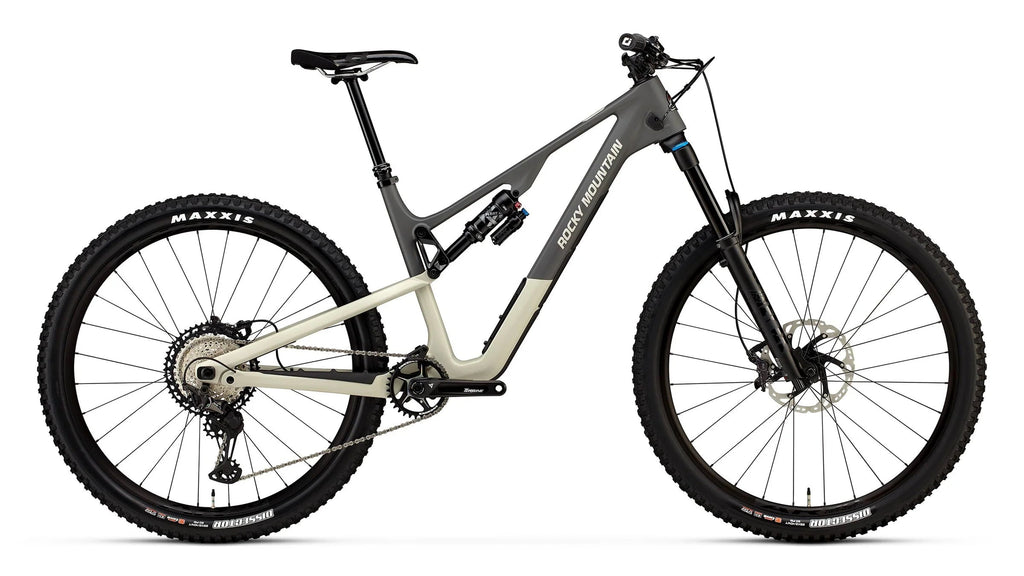

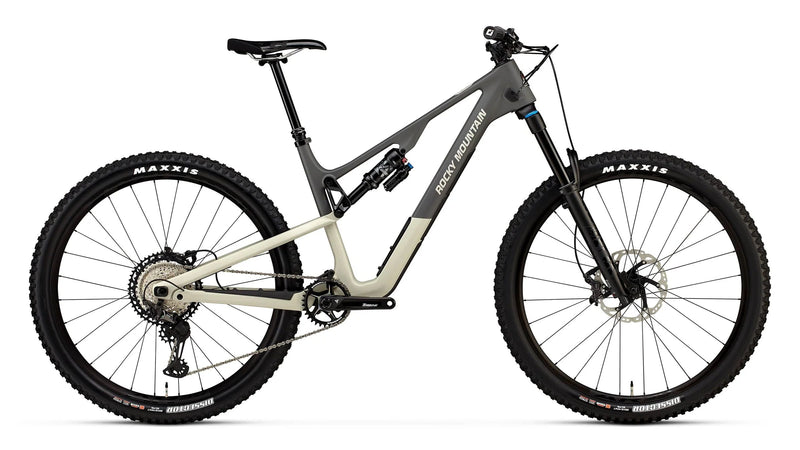

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.
Frame
SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork
Fox 36 Float EVOL GRIP2 Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Front Travel
150
Shock
Fox Float X Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel
140
Headset
FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Handlebar
Rocky Mountain AM Carbon 780mm
Grips
ODI Elite Pro Lock On
Brakes
Shimano XT Trail 4 Piston | Metal Pads
Shifters
Shimano XT
Rear Derailleur
Shimano XT
Cranks & Chainring
Race Face Turbine Cinch | 32T | 30mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
Bottom Bracket
Race Face BB92 30mm
Cassette
Shimano XT 10-51T
Chain
Shimano M8100
Front Hub
Rocky Mountain SL Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes
DT Swiss Competition 2.0/1.8/2.0
Rims
Race Face AR 30 | 28H / Tubeless Ready - Tape / Valves Incl
Tires
F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready //
Seatpost
Race Face Turbine R (by Fox) Dropper 30.9mm | XS = 125mm | SM = 150mm | MD = 175mm | LG - XL = 200mm
Saddle
WTB Volt Race 142
Weight
30.954|14.07 KGS
